product description:

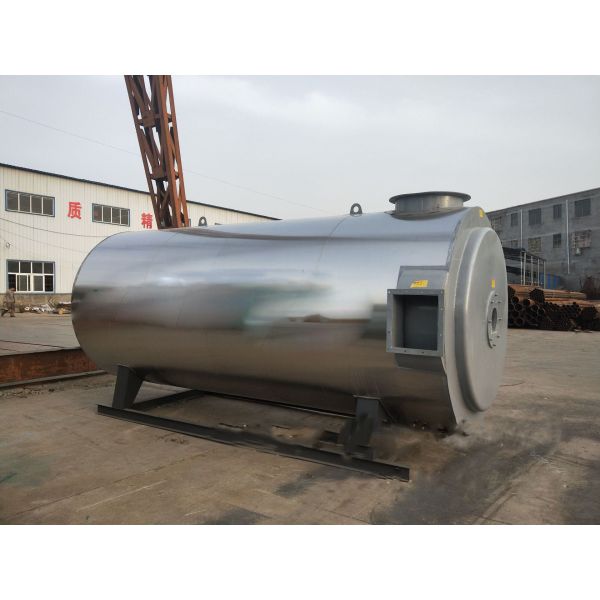

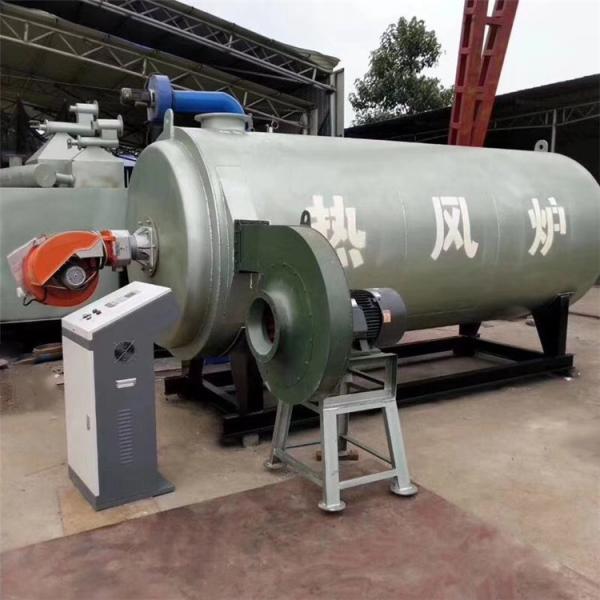

The furnace body is mainly made into two chambers by the outer shell, inner furnace, support plate, etc. The inner chamber is the combustion furnace; the outer chamber is equipped with blades to form a channel for preheating air ducts, and a tangential preheating is installed at the flue gas outlet. The air duct outlet is connected to the chimney, and the burner is installed at the inner furnace bile opening.
The blower is an important equipment for the normal combustion of the burner. The air generated with a certain wind pressure and air volume is preheated by the preheating air duct and then enters the furnace body to form hot air. By adjusting the damper door, the air intake volume can be adjusted to ensure an accurate ratio of flue gas and cold air to achieve the temperature required by the user. The flue gas temperature can be satisfied by adjusting the damper on the main body.
Features:
a. Use light oil (gas) as fuel.
b. Use clean hot air as the drying medium, no pollution.
c. Low energy consumption and high thermal efficiency.
d. Automatic temperature measurement and display.
e. It is simple to operate and easy to use. The supporting equipment (except the burner) is all made in China, and its performance indicators have reached the domestic advanced level.
Technical Parameters:
| Serialname | unit | unit | value |
| 1 | Rated heat supply | Kcal | 60 |
| 2 | Maximum operating temperature | ℃ | 250℃/400℃(Stainless steel) |
| 3 | working medium | | Air |
| 4 | Rated thermal efficiency | % | 92 |
| 6 | Hot air temperature | ℃ | 130℃-140℃ |
| 8 | Low calorific value of heavy oil | MJ/Kg | 40.210 |
| 9 | Theoretical consumption | Kg/h | 120 |
| 10 | exhaust temperature | ℃ | 160 |
| 11 | Boiler maximum transport size | mm | 4200×2015×1910 |
FAQ:
Q1: How can you get the best price quickly?
1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.
Q2:Why choose us?
1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.
Q3: Details of electric control cabinet
Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.
Q4:What is the using life of your boiler?
1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
